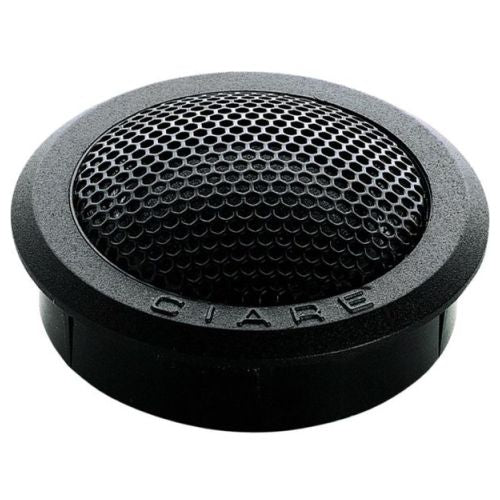

CIARE CAR CT250 1" NEO Tweeter (1 Pair)

SPECIFICATIONS
Nominal Diameter 1''- 26 mm
Rated Impedance 4 Ohm
Nominal Power Handling ¹ 75 W
Program Power ² 150 W
Sensitivity ³ 91 dB

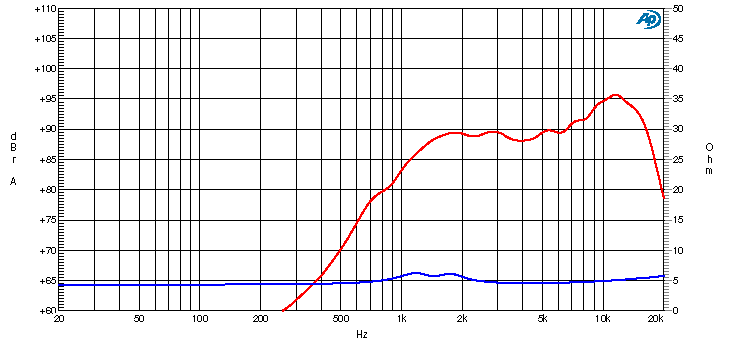

Frequency Range ⁴ 2500-20000 Hz
Minimum Impedance -
Flange material -
Magnet Material Neodymium
Diaphragm Material Silk
Diaphragm Shape Dome
Surround -
Voice Coil Winding Material -
Voice Coil Former Material Aluminum
Flux Densitry -
Ferrofluid Yes
Connection type -
Recommended Crossover Frequency

T/S PARAMETERS 4 Ohm
Resonance frequency Fs 1400 Hz
DC Resistance Re 3,3 Ohm
Electrical Q Factor Qes 1,23
Total Q Factor Qts 0,54
Bl Factor Bl 1,7 Tm
Effective Moving Mass Mms 0,3 g
Suspension Compliance Cms -
Effective Piston Diameter D 32 mm - 1,26 in
Effective piston area Sd 8 cm² - 1,24 sq in
Voice Coil Inductance @ 1kHz Le 0,08 mH
