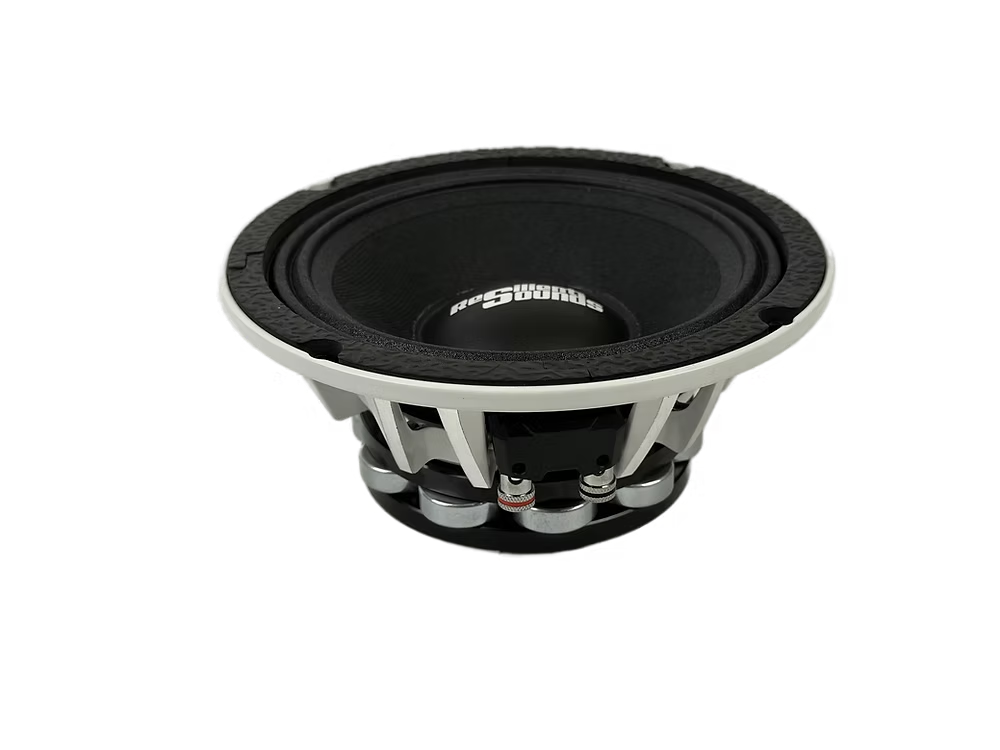

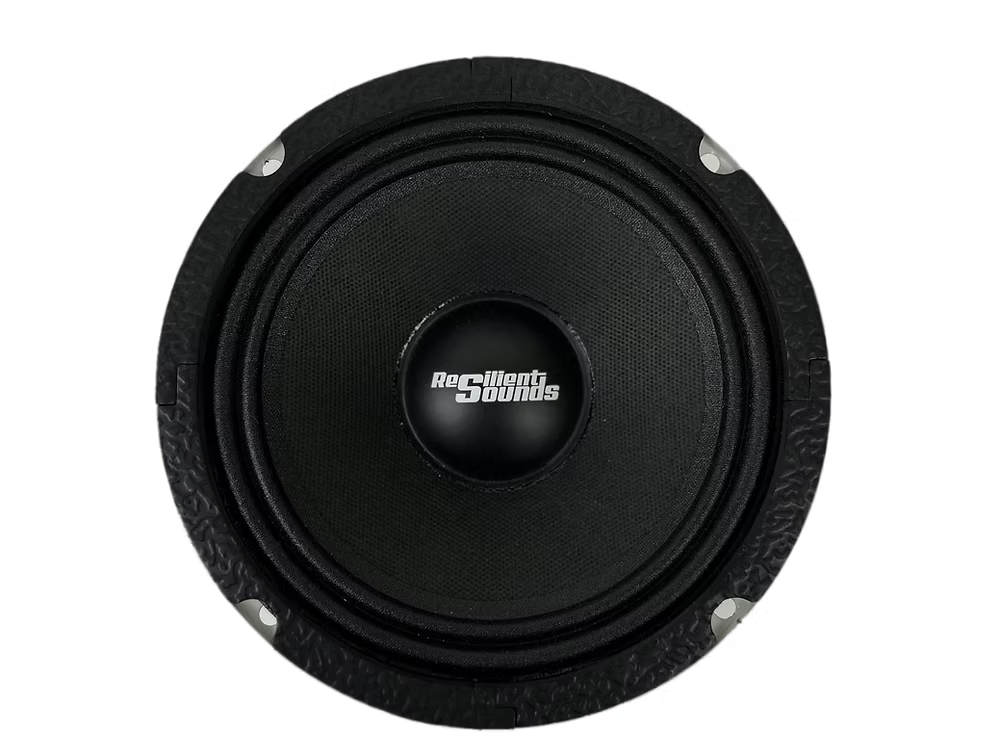

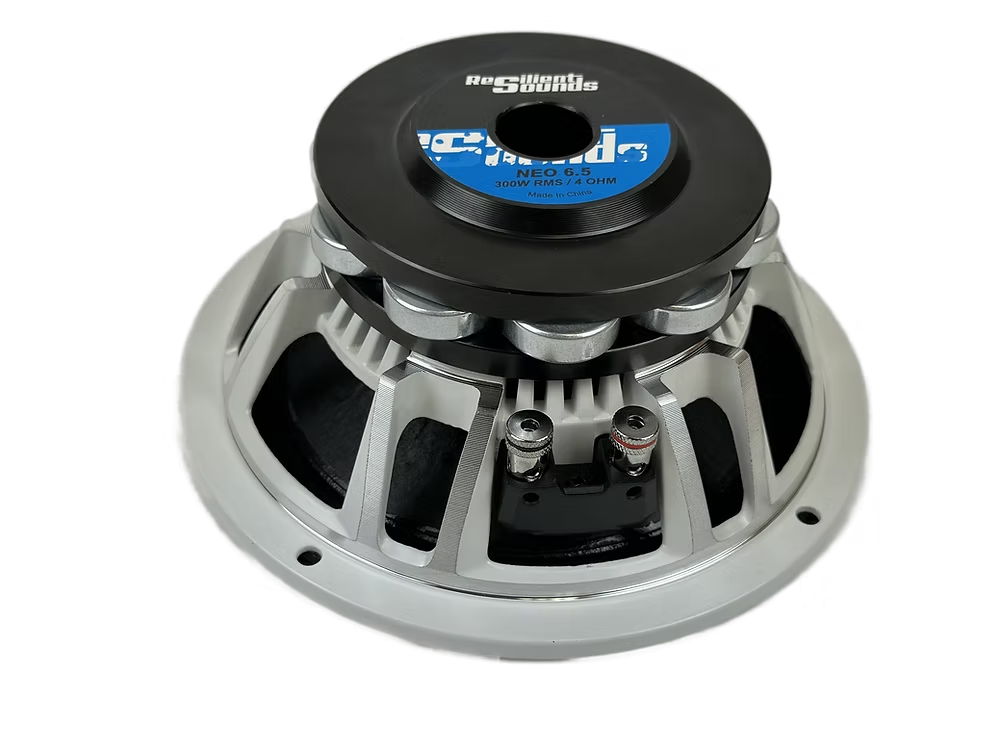

Resilient Sounds RS NEO 6.5 300w RMS 4ohm 6.5" speaker

Neo 6.5

600 Watts Max Power Handling

2" Voice Coil

96.5 dB Sensitivity

135HZ-12.5KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          6.5” (165mm)

Max Power Handling      600 w

RMS Power Handling     300 w

Frequency Response      135Hz-12.5KHZ

Nominal Impedance       4ohm

Sensitivity                         96.5dB

Magnet                              Neodymium

Voice Coil Diameter        2"

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        2.75 L

Free Air Resonance        Fs           138 Hz

Mechanical Factor          Qms      6.53

Electrical Factor               Qes       0.35

Total Factor                     Qts        0.34

Cone Area                        Sd          136.8cm²

Mechanical Mass            Mms     12.66 g

BI Factor                           BI           9.92 Tm

Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          6.69”(210mm)

Front Mount Baffle Cutout          5.90"(186mm)

Mounting Depth                           2.73"(79mm)

Overall Depth                                 3.01"(89.3mm)
