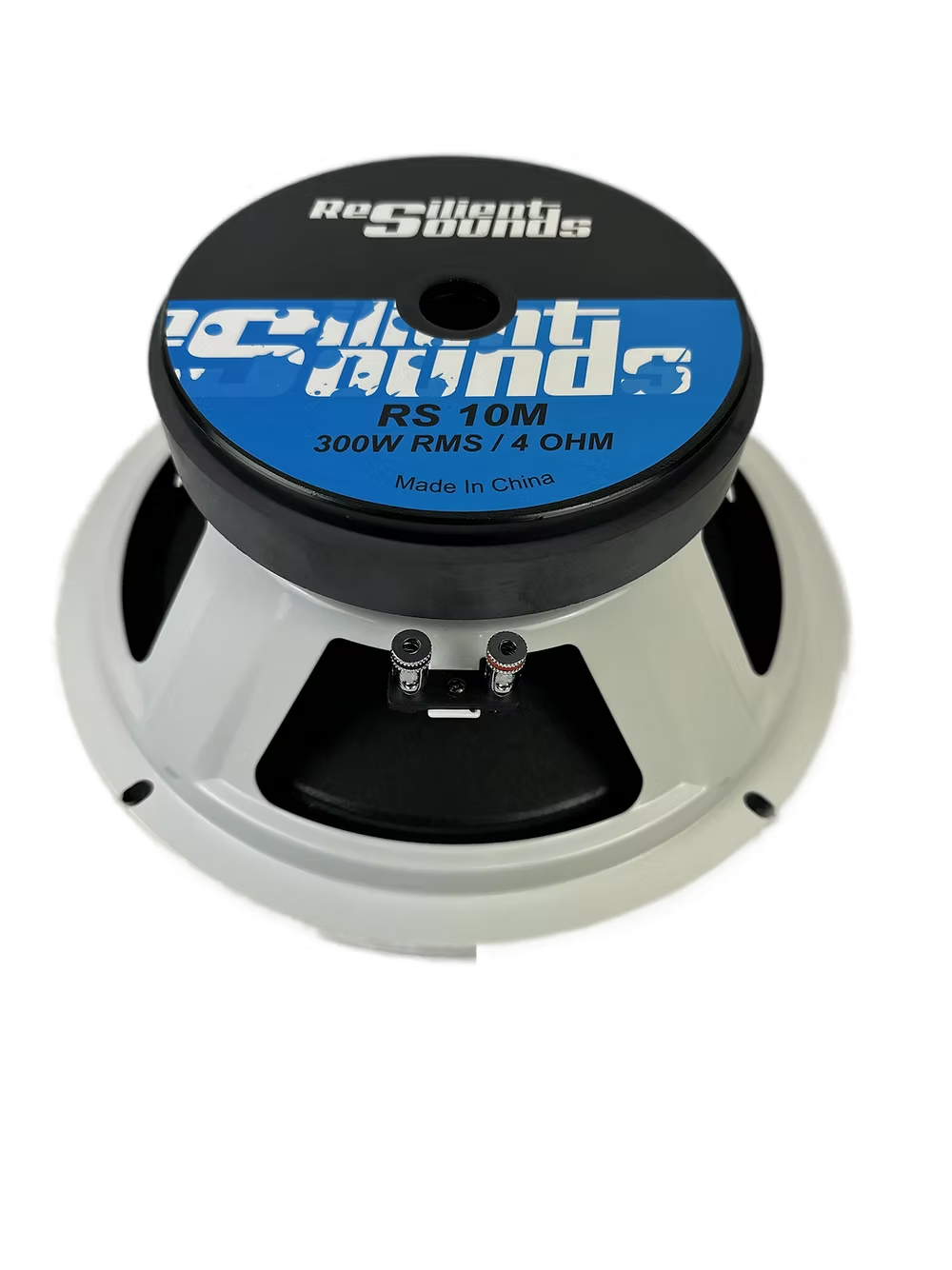

Resilient Sounds RS 10M 300w RMS 4ohm 10"speaker

RS 10M

600 Watts Max Power Handling

2" Voice Coil

98.5 dB Sensitivity

70HZ-7KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          10” (254mm)

Max Power Handling      600 w

RMS Power Handling     300 w

Frequency Response      70Hz-7KHZ

Nominal Impedance       4ohm

Sensitivity                         98.5 dB

Magnet                              Ferrite

Voice Coil Diameter        1.5"

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        37.94 L

Free Air Resonance        Fs           72 Hz

Mechanical Factor          Qms      5.51

Electrical Factor               Qes       0.48

Total Factor                     Qts        0.44

Cone Area                        Sd          349.6cm²

Mechanical Mass            Mms     22.21 g

BI Factor                           BI           8.21 Tm

Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          10.11”(257mm)

Front Mount Baffle Cutout          9.13"(232mm)

Mounting Depth                           3.85"(98mm)

Overall Depth                                 4.21"(107mm)
