Resilient Sounds Gold 10 1,000RMS Woofer
Resilient Sounds Gold 10 1,000RMS Woofer
The RS Gold Series is geared towards audio fanatics searching for a low distortion and high performance driver without breaking your budget!
Rated 1,000RMS
2.5 inch Voice Coil
Spacers for adding cooling, and more throw.
Shorting Ring.
FEA optimized triple stack motor

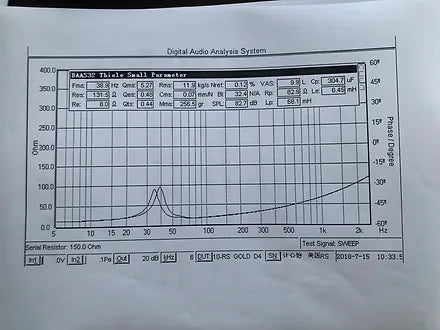

SPECS
SPL: 82.7 dB
FMS: 38.9 Hz
BL: 32.4
Res: 131.5
Re: 8.0
Qms: 5.27
Qes: 0.48
Qts: 0.44
Rms: 11.9
Cms: 0.07
Mms: 256.5 gr
Nref: 0.12%
VAS: 9.9 L
Rp: 82.9
Lp: 68. mH
Cp: 304.7 uF
Le: 6.45 mH
Xmax: 25
BOX HEALTHY RECOMMENDATION
Every vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
Ported enclosure
1.25ft-1.75ft tuned @35hertz with 12-16sqaure inch of port area per cubic foot.
CUTOUT 9.3"
Recommended Enclosure: 1.25-1.75cuft
Cutout: 9.3
